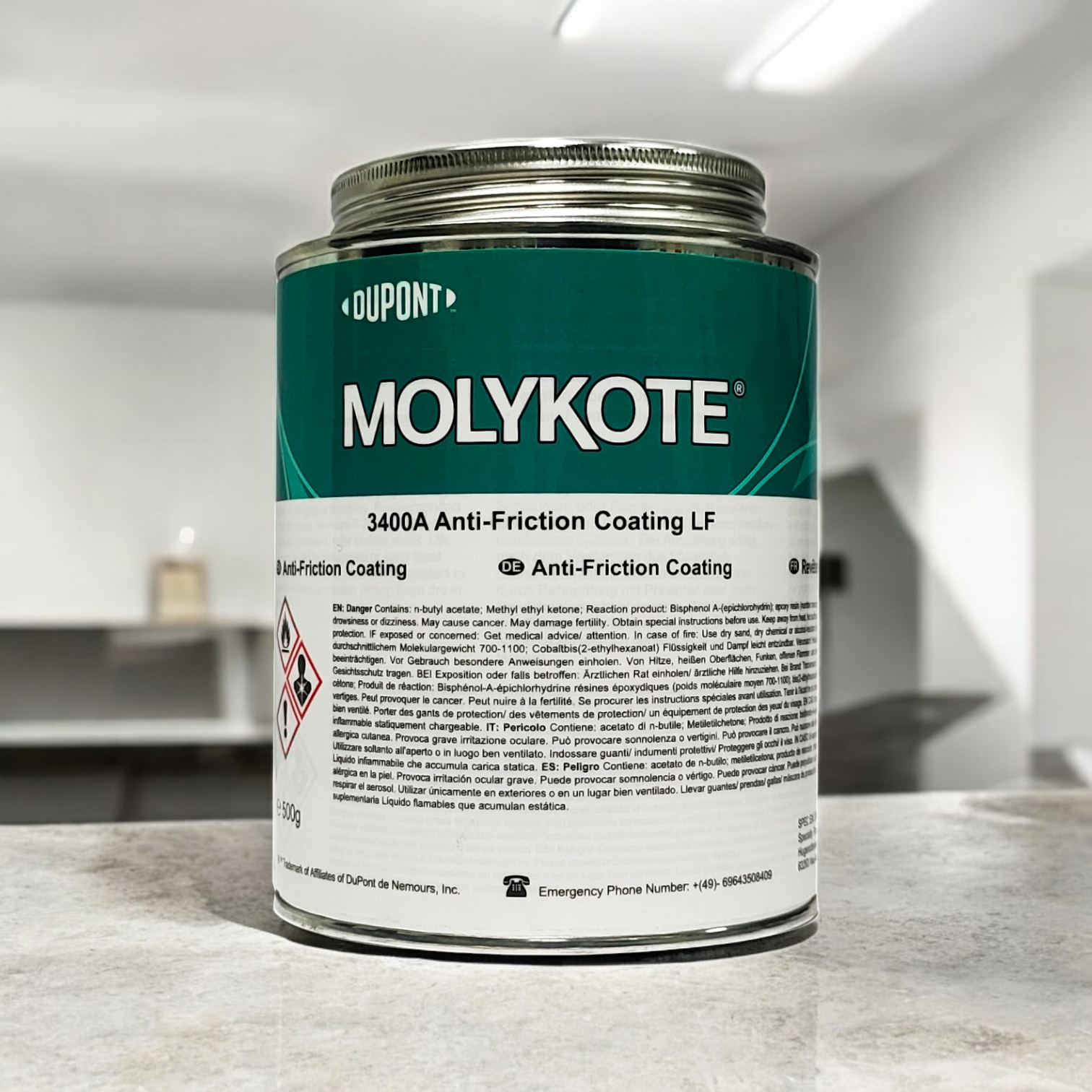

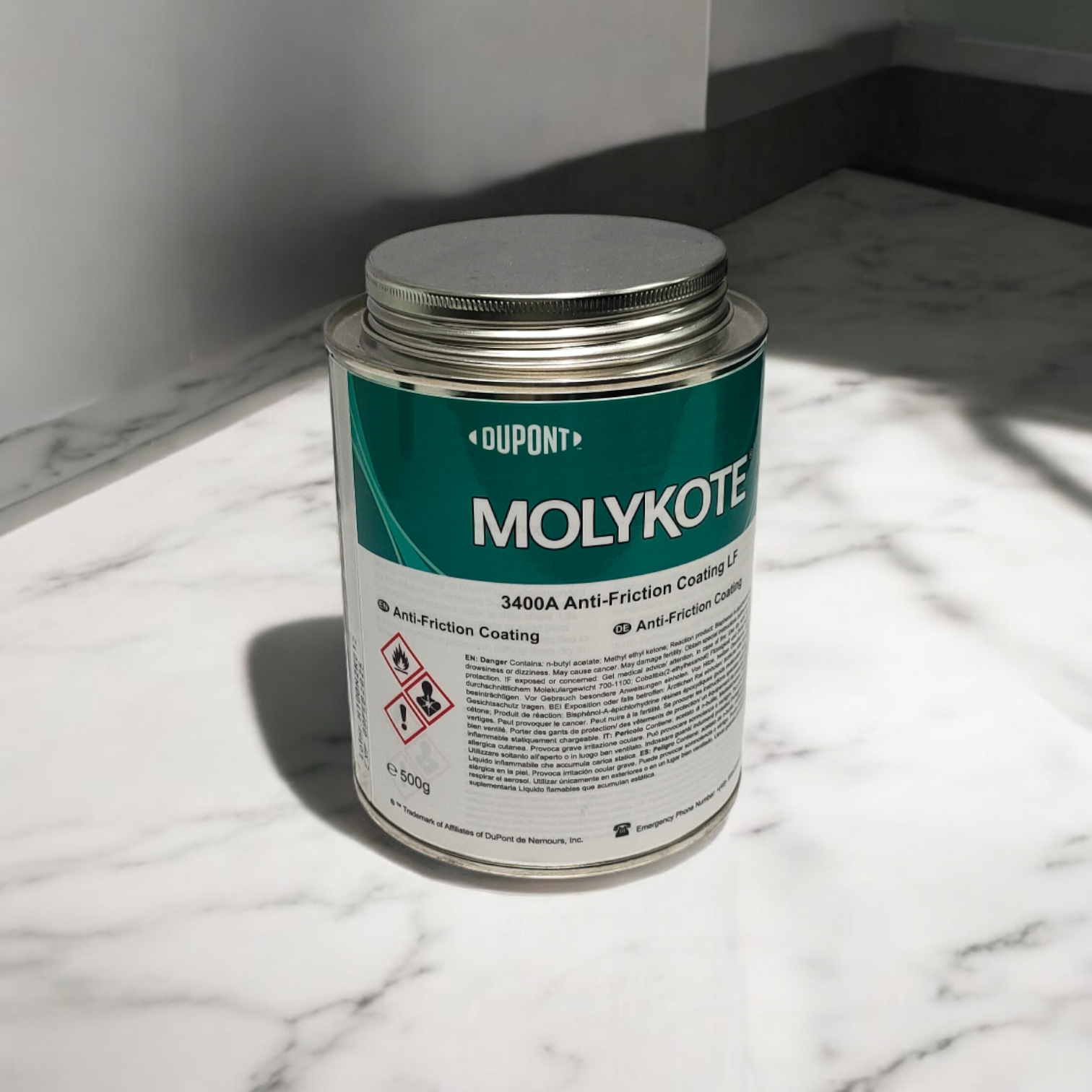

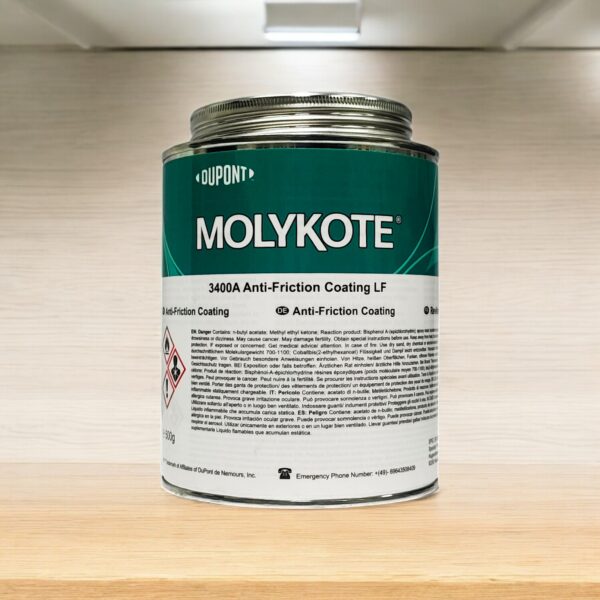

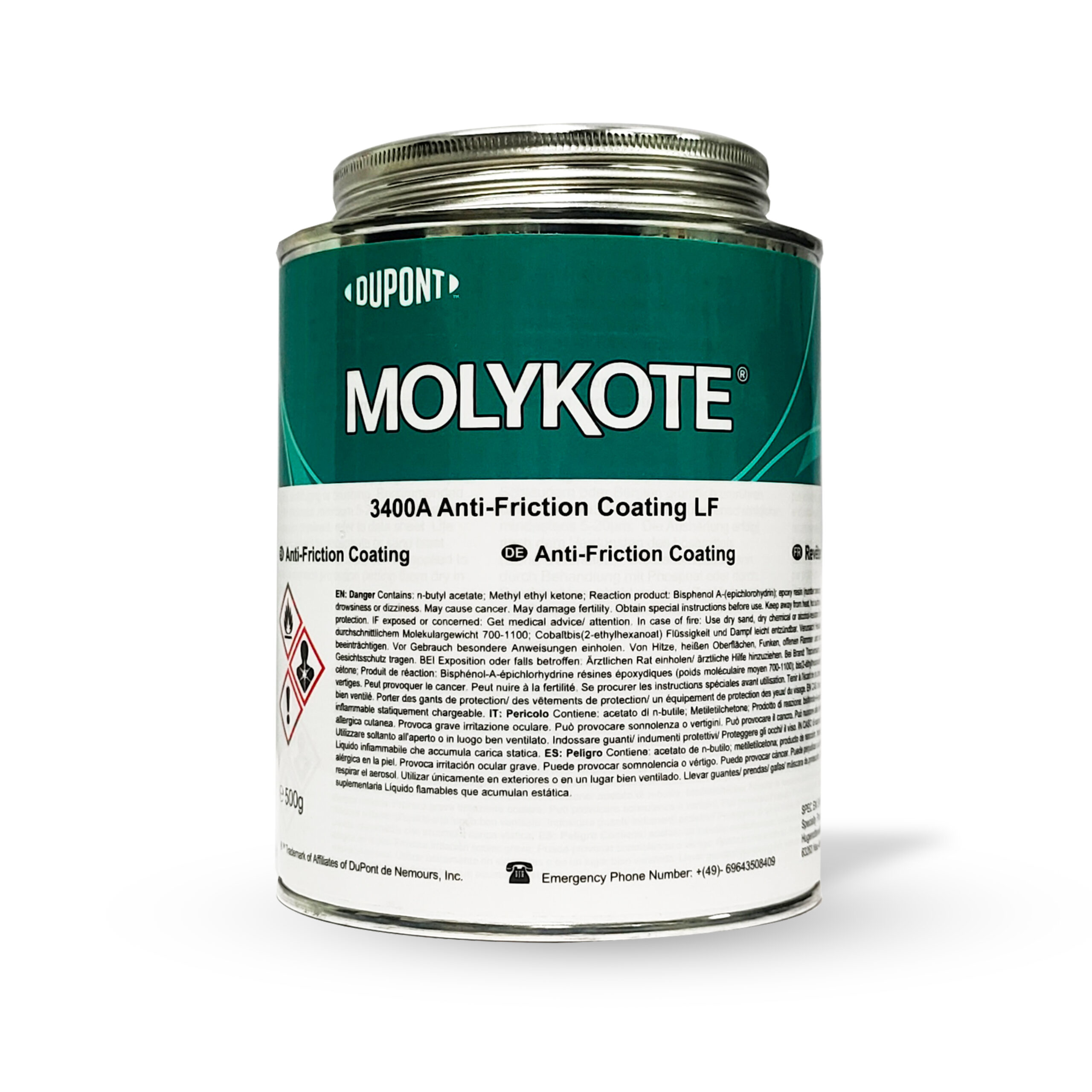

MOLYKOTE 3400A Anti Friction Coating

SKU :

Pack Size : 1 KG

10 Piece per Cartoon

Downloads

Share Product :

Description

• Excellent lubrication
• Excellent corrosion protection
• Good solvent resistance
• High load-carrying capacity
• Excellent adhesion to metal
• Low coefficient of friction
• High resistance to oil and fuels
• No intentional polytetrafluoroethylene (PTFE) or per- and polyfluoroalkyl substances (PFAS)

Application

Used for sliding contact of metal/metal combinations with slow to moderately fast movements and high loads. Used successfully in automotive applications such as pins, springs and bearings surfaces in brakes; body hinges and linkages; moving parts in locks, switches, ventilation controls and servo mechanisms; under-the-hood linkages exposed to dust, moisture, fuels, oils and other contaminants; hinge pins, sleeve bearings and cams; servo mechanism and instrument bearing; threaded connections and fasteners.

Direction to Use

Carefully degrease friction surfaces with solvent and allow solvent to evaporate completely. Stir MOLYKOTE® 3400A Anti-Friction Coating, LF thoroughly and apply by spraying, dipping, painting or centrifuging (Recommended thinner: MOLYKOTE® L13 Thinner). The friction surfaces should be coated as evenly and thinly as possible. Average recommended coating thickness for typical applications is 10-15 μm. Typical curing conditions are 30 minutes at 200°C (392°F).
