Permatex Bearing Mount for Close Fits

SKU :60950

Pack Size : 50 ml

10 Piece per Cartoon

Category

Downloads

Share Product :

Description

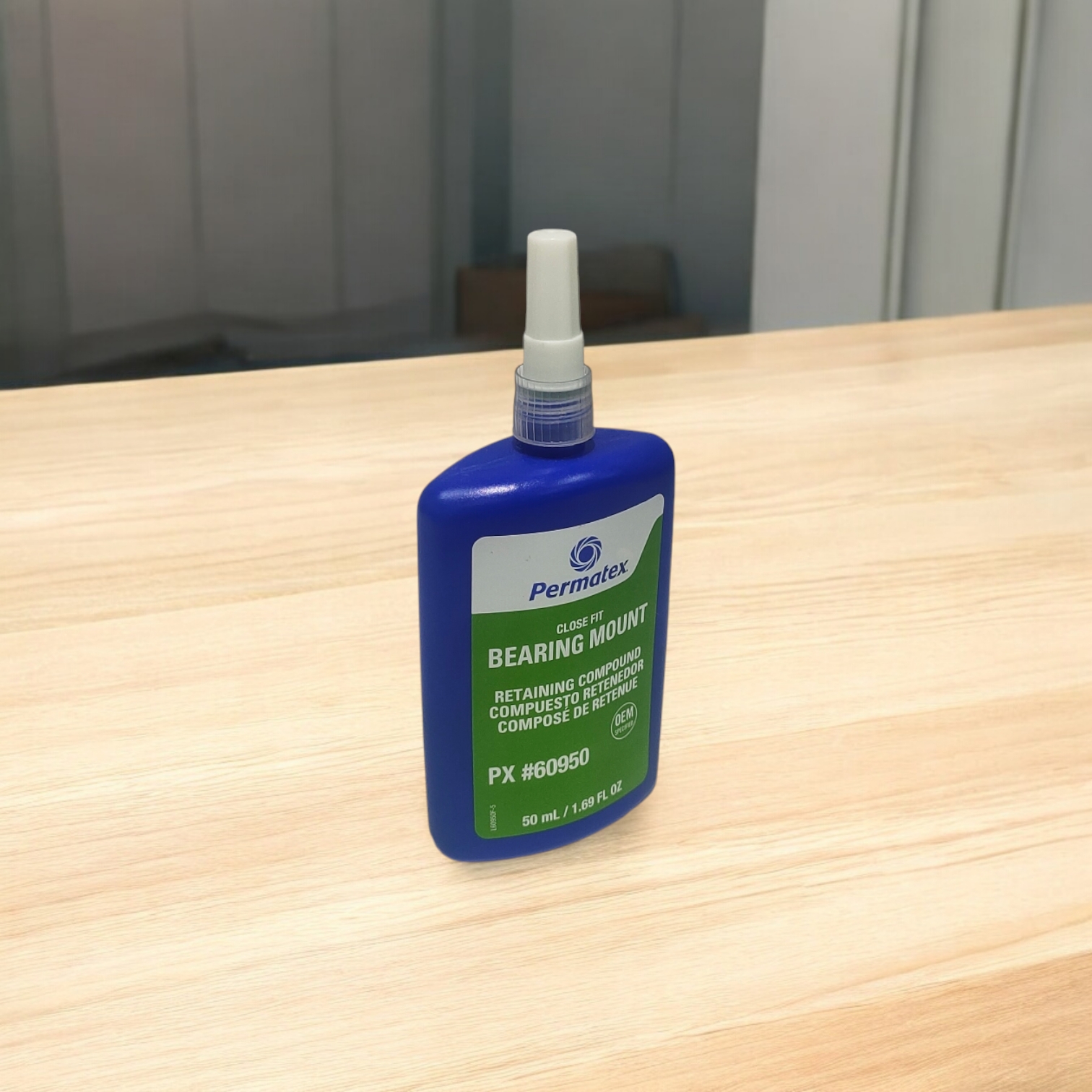

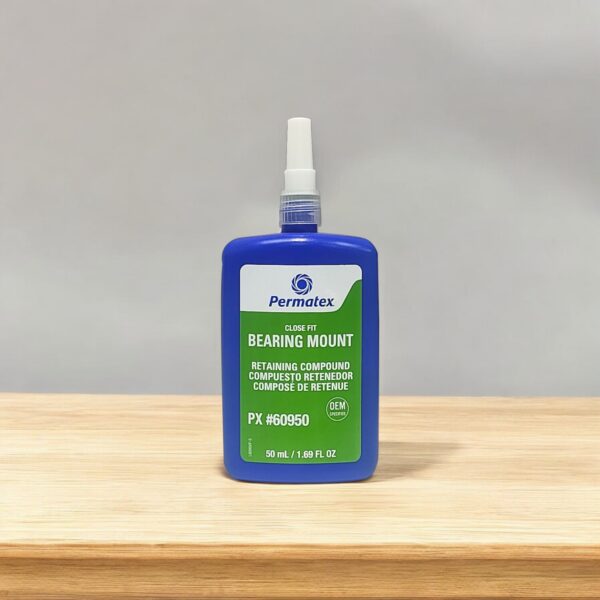

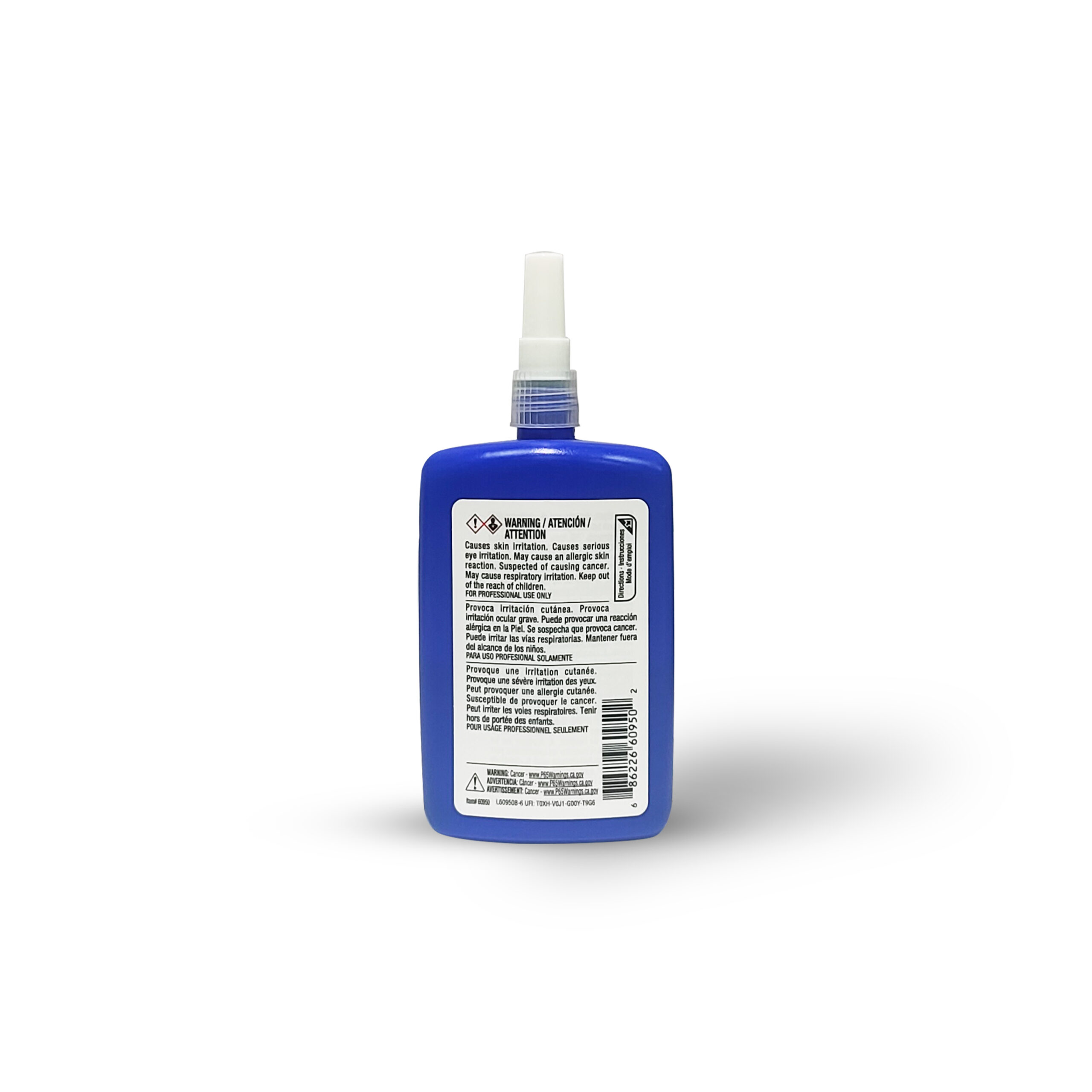

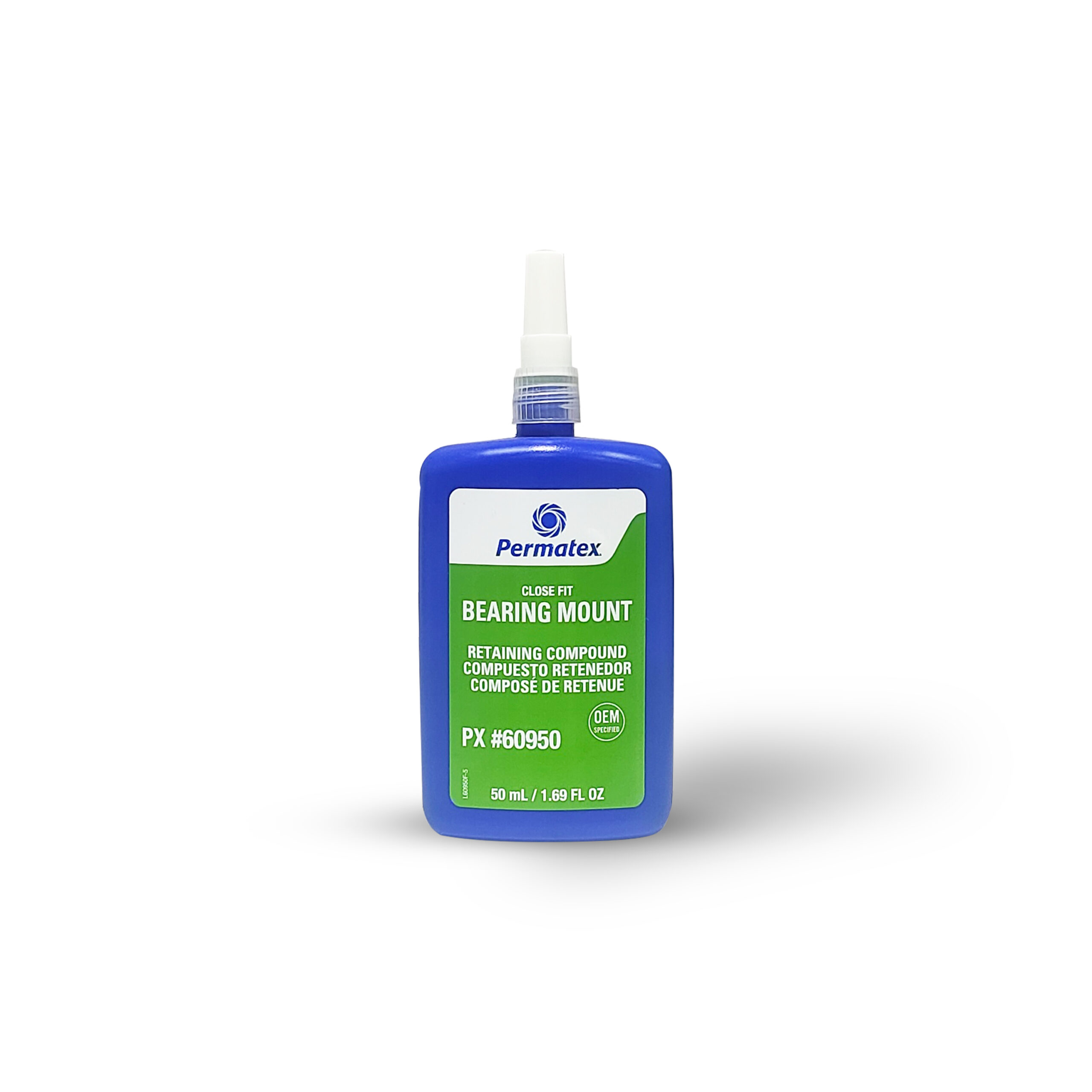

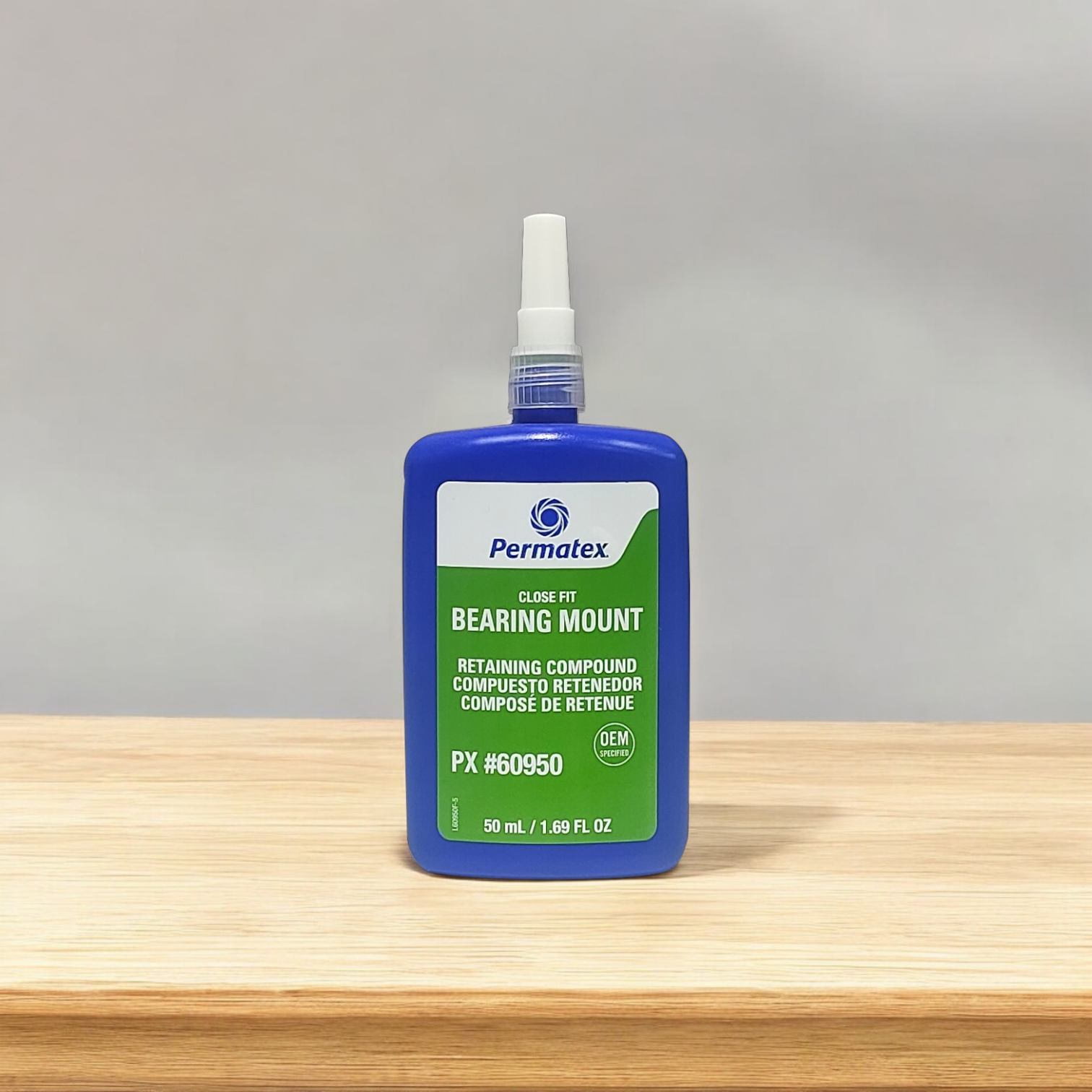

Permatex Bearing Mount for Close Fits is a general purpose, low viscosity, single component anaerobic retaining adhesive for cylindrical joints. It is a green colored liquid resin, which hardens and cures in the absence of air. Permatex Bearing Mount for Close Fits self-hardens into a tough plastic material when it is confined between close-fitting metal parts. The cured adhesive is a thermoset plastic suitable for exposure to most solvents and engine fluids. OEM Specified. Meets or exceed the requirements of Military Specification Mil-R-46082B, Type I.

Application

• Used to bond cylindrical fitting parts
• Bushings
• Bearings
• Oil seals
• Ring gear bolts
• Differential lock pin

Direction to Use

1.Remove any grease or oil by using Permatex Brake & Parts Cleaner. 2.For slip fitted assemblies, apply adhesive around the leading edge of the collar and use a rotating motion during assembly. 3.For press fits, adhesive should be applied thoroughly to both bond surfaces and assembled at high press-on rates. 4.For shrink fitted assemblies, the adhesive should be coated onto the pin; the collar should then be heated to create sufficient clearance for free assembly. 5.For faster cure rates, use Permatex Surface Prep on both surfaces. 6.Parts should not be disturbed until sufficient handling strength is achieved. 7.Any material that is on the outside of
